Description

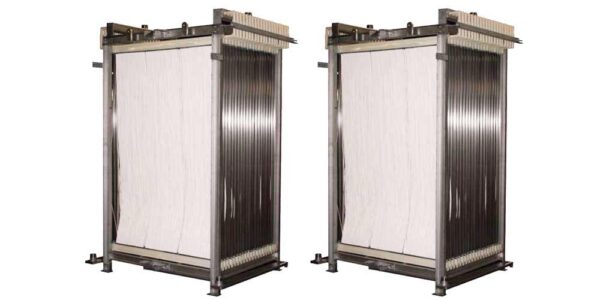

HYDRAsub MAX HSMM600-ES Membrane incorporates an ultrafiltration fiber that consists of a pore size of 0.05 µm. The proposed size of the modules varies between 40 and 2400 m2.
The product’s main features are a high flux operation, a reduced footprint condition, a quite straightforward method and highly durable material for an extended service life.
Models
| HYDRAsub®MAX- MBR | HSMM600-ES | |
|
Module |
Configuration: Fiber Orientation: Filtrate Flow: Membrane Polymer: Pore Size (nominal): Number of Elements in Module: Nominal Membrane Area per Module: Permeate Connections: Air Connections: Guide Pipe Connections: Typical Module Dry Weight: Typical Module Wet Weight: |

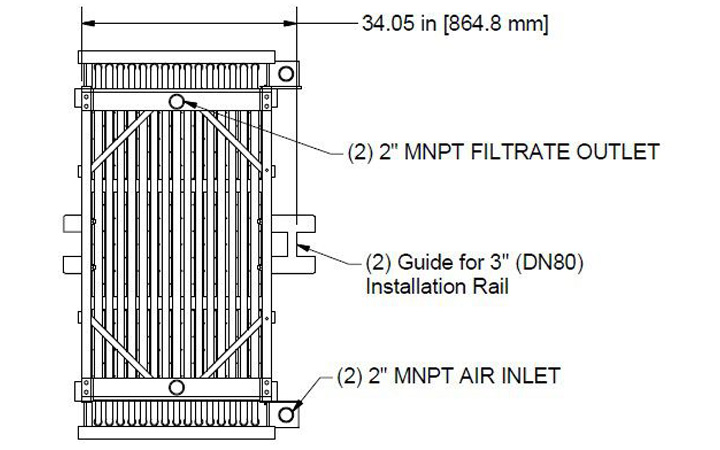

Submerged Membrane Vertical Bi-directional Polyvinylidene Flouride (PVDF) 0.05 μm 15 (40 m² each) 6456 ft2 (600 m²) (2)- 2” MNPT Connections (2)- 2” MNPT Connections (2)- To fit 3” pipes 837 lbs (381 kg) 11631 lbs (740 kg) |
| Typical Process Conditions |
Operating Filtrate Flux†: Peak Operating Flux†: Chemically Enhanced Backwash (CEB) Flux: CEB Chemicals: Clean In Place (CIP) Flux: CIP Chemicals: |
4-20 gfd (7-34 lmh) 30 gfd (51 lmh) 2.4 gfd (4 lmh) NaOCld 2.4 gfd (4 lmh) NaOCl or Citric Acidd |
Features
Features
- Maximum Trans Membrane Pressure (Vacuum): -6 psig (-0.41 bar)
- Maximum Backwash Trans Membrane Pressure: 2 psig (0.14 bar)
- Maximum Instantaneous Chlorine Concentration: 5,000 ppma
- Maximum Chlorine Tolerance: 742,000 ppm-hrsb
- MLSS Range: 8,000 – 12,000 mg/Lc
- Operating Temperature Range: 41 – 104°F (5 – 40° C)
- Feed Water pH Range: 6.0 – 8.0
- Cleaning pH Range: 1.0 – 11.0
- Operating Mode: Outside to Inside
Applications
- HYDRAsub MAX HSMM600-ES Membrane uses top-notch features to greatly enhance the working processes of industrial and municipal wastewater projects.
