Description

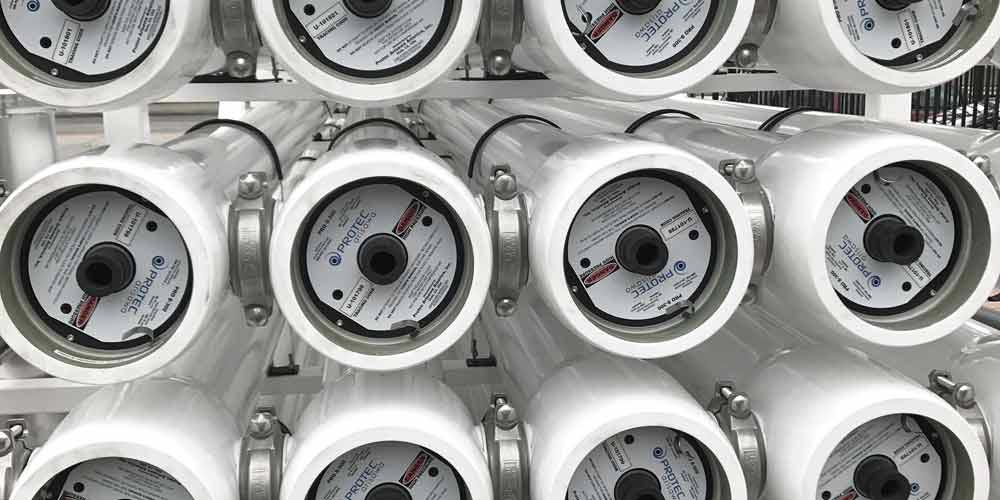

Protec 2.5″ End Ported Design
Protec 2.5″ End Ported is made with a standard vessel design which incorporates the necessary connections put at the end closer of the vessel head. The models are based on a structure that utilizes durable housing for the membrane filtration process to successfully treat water at any positive pressure of more than 1000 PSI. The high durability of these vessels also ensures effective long-term use, while being able to accommodate hollow fiber elements and anykind of 2.5″ diameter spiral-wound component.
Models
PRO 2.5-1200-EP-21 SPECIFICATIONS
| Part Number: | PRO-2.5-1200-EP-21 |
| Protec Part Number: | PRO 2.5 1200-EP-21 |
| For Membrane Size: | 2.5″ x 21″ |
| For Membrane Type: | AMI/Applied Membranes, DOW/FilmTec Style |
| For Membrane PWT Size: | ¾” OD Product Water Tube |
| Design Pressure: | 1200 psi @ 120°F |
| Min. Design Temperature: | 20°F @ 1200 psi |
| Hydrotest Pressure: | 1320 psi |
| Vessel Overall Dimensions: | 3.8″ OD x 25″L (9.7cm x 63.5cm) |
| Feed, Brine & Permeate Ports: | 1/4″ FNPT |
| Materials: | FRP Body, Acetel End Port, 316 SS Ring |
| Configuration: | End Port |
Features
- Design Pressure = 1200 PSI @ 120°F
- Min. Design Temperature = 20°F @ 1200 PSI
- Hydrotest Pressure = 1320 PSI
Applications
- Brackish Water
- Tap Water
- Seawater Desalination Plants
