Description
Pure Aqua Level Switches are high quality instruments utilized with a wide range of various configurations that will satisfy all user requirements and water quality needs. High and low level pressure switches are designed to manage important parameters in the water treatment processes such as the chemical tanks and control storages. They can be adapted with the pumping technology used in reverse osmosis systems to add further protection against over filling, cavitating, and potential to run dry. These switches are manufactured with the most quality elements.

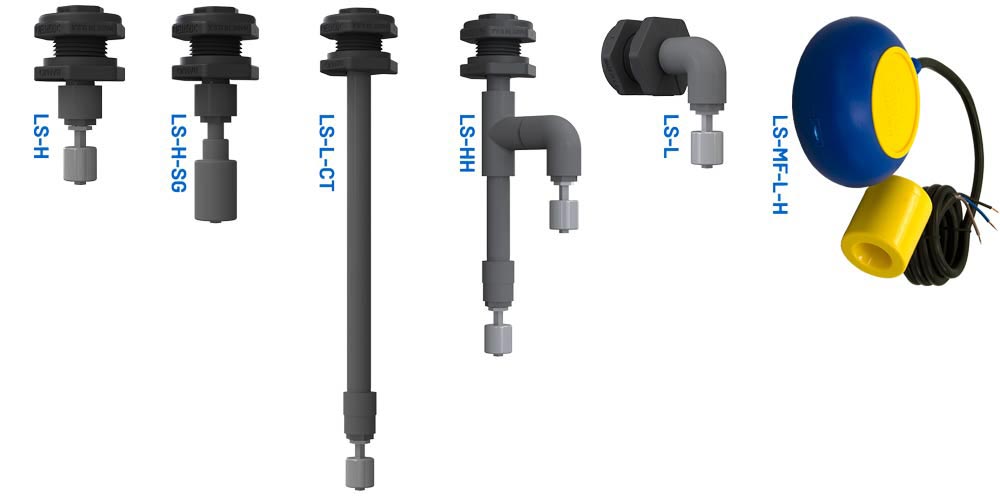

Models
| Part # | Description | Length | Material |

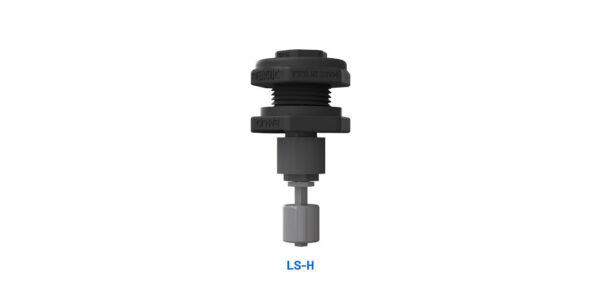

| LS-H | Magnetic float (high level) |
3.75″ | Polypropylene-PVC SCH 80 |

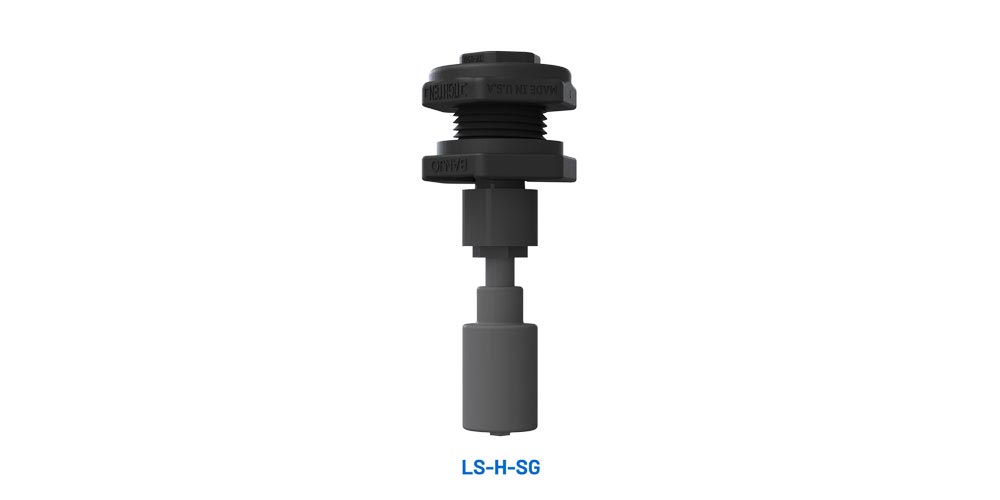

| LS-H-SG | Magnetic float (high level-splash guard) |
5″ | Polypropylene-PVC SCH 80 |

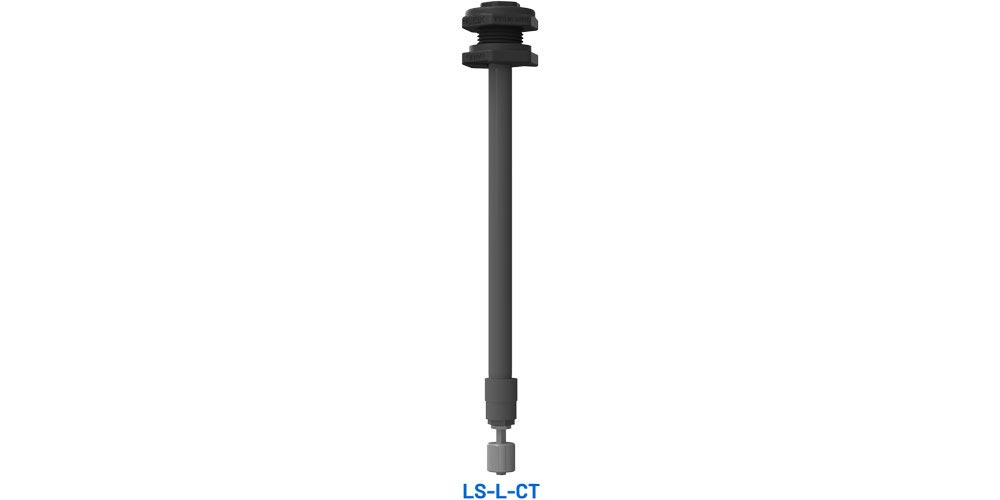

| LS-H-L-CT | Magnetic float (low level) |
15″ | Polypropylene-PVC SCH 80 |

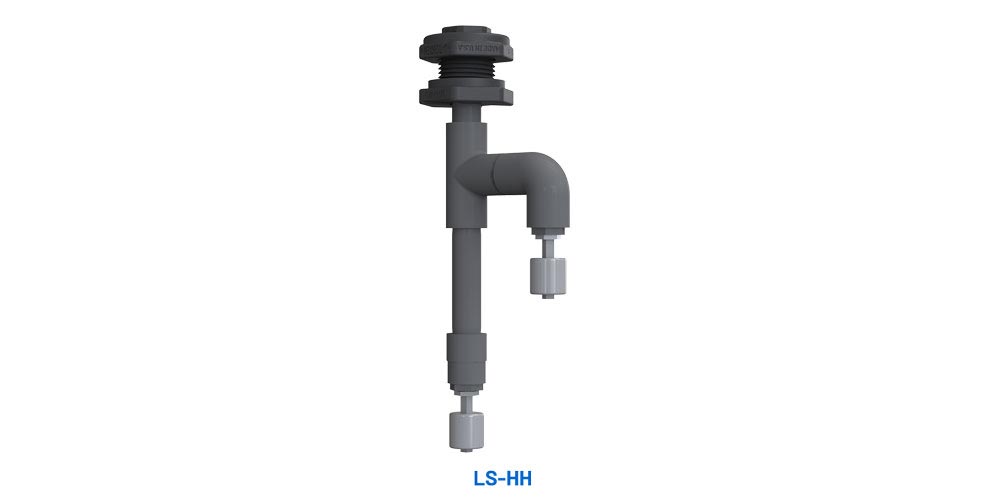

| LS-HH | Magnetic float (high level x2) |
5.25-10″ | Polypropylene-PVC SCH 80 |

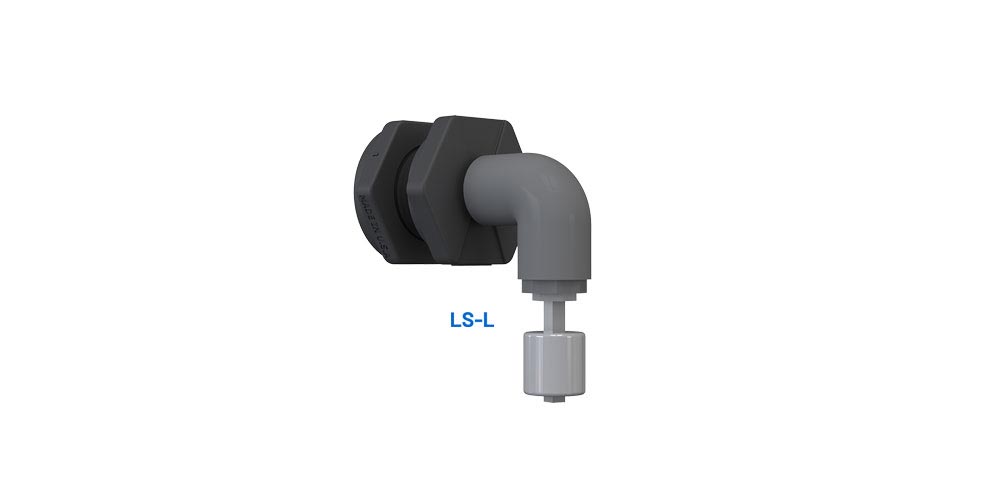

| LS-L | Magnetic float (low level) |
3.5″ | Polypropylene-PVC SCH 80 |

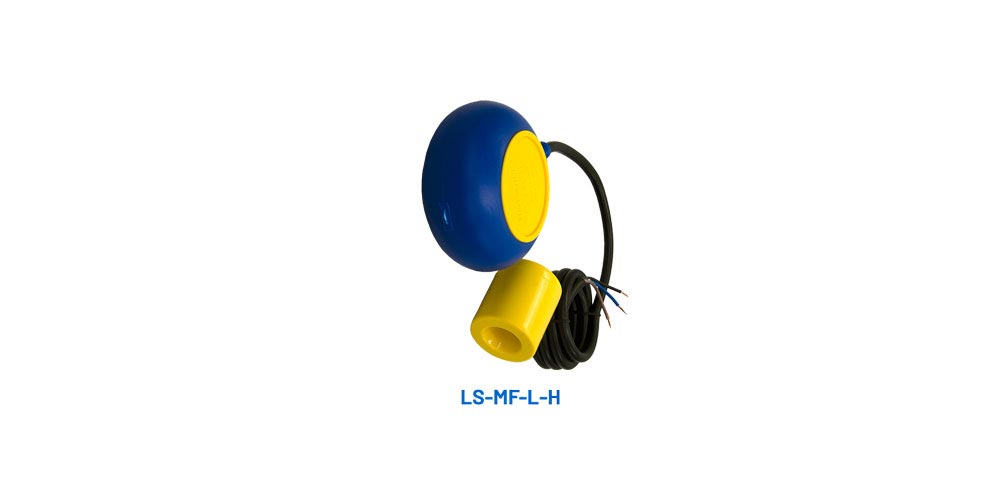

| LS-MF-L-H | Mechanical float (low or high level) |
108” | Polypropylene-PVC |
Features
Standard Features
- 1/2″ Tank adapter with 1/2″ FNPT
- Corrosion Resistant
- Water tight tank connection
- Durable strength and quality
- Easy installation
- High and low level
- N/O or N/C position
- Splash guard
Applications
- Reverse osmosis
- Nanofiltration
- Ultrafiltration
- Electrodeionization
- Water filtration
- Commercial & Industrial
