Description
- Designed for industrial and commercial filtration needs
- Heavy-duty 304L or 316L stainless steel construction for maximum durability and corrosion resistance
- V-band clamp or swing bolt closures for quick and easy cartridge change outs and secure sealing
- Holds 30″ or 40″ cartridge lengths to accommodate a wider ange of flow rates
- Accepts double open-ended (DOE) style cartridges (222 and 226 style adapters are optional)
- Knife edge seals eliminate bypass on DOE cartridges
- Top spring seals allow for cartridge length variations
- Flange inlet and outlet connections allow for easy piping
- Equipped with heavy-duty stainless steel mounting legs
Models
Maximum Operating Pressure
- 150 psig (10.3 bar) @ 300°F (149°C)
Inlet and Outlet Connections
- Inlet /Outlet: 3″ (12FOS) and 4″ (22FOS) RF Flanges
- Drain Ports: 1/2″ FNPT
- Vent Ports: 1/4″ FNPT (12FOS), 1/2″ FNPT (22FOS)
- Optional: RF flanges, Sanitary ferrules, MNPT, FNPT, BSP and Grooved fittings.
Materials of Construction
- Head and Shell: 304L or 316L Stainless Steel
- Connections: 304L or 316L Stainless Steel
- Closure: Clamp: 304L Stainless Steel
- Swing Bolts: Zinc Plated Steel
- Vent and Drain Plugs: 304L or 316L Stainless Steel
- Mounting Legs: 304L Stainless Steel
Gaskets
- Buna N (FDA Grade)
- Optional: EPR, Silicone, Viton or Teflon Encapsulated Silicone
Finish
- Poly-coat on exterior surfaces
- Optional: Electro-polish, Glass bead or Passivate
Cartridge Type
- DOE style cartridges (maximum 2 3/4″ diameter
- for 12FOS and 2 5/8″ diameter for 22FOS series)
- Optional: 222 and 226 adapters. For 2 3/4″ cartridge 22FOS
- series holds twenty-one cartridges… order as 21FOS housing.
Custom Options
- Gauge Ports or Gauge Ports with Pressure Gauges
Features

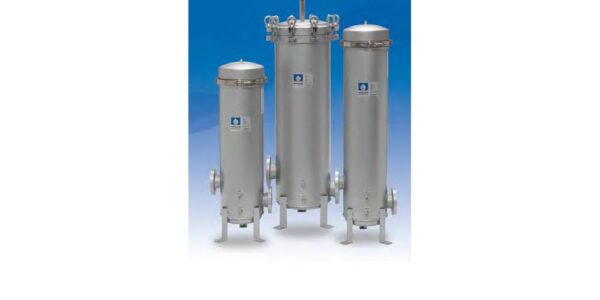

Multi-Cartridge Housings for Industrial Applications
- Heavy-duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability
- Holds twelve (12) or twenty-two (22) cartridges to service a wide range of flow rates
- Accepts standard double-open-ended (DOE) style cartridges (222 or 226 style adapters optional)
- Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC)
- Inlet and outlet connections: 3″ flange (12FOS) and 4″ flange (22FOS) (sanitary (TC), BSP, grooved or other pipe fitting options available)
- Equipped with heavy-duty stainless steel mounting legs
- Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional)
Applications
- Water
- Desalination
- Chemicals
- Food & Beverage
- Electronics
- Oil/Gas
- Power
- Inks/Paints/Coatings
- Coolants
- Pulp & Paper
