Description

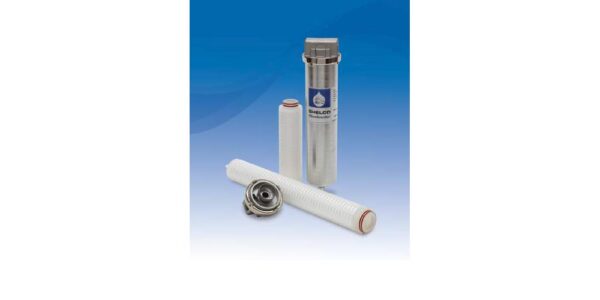

Single Cartridge Housings
- Designed for industrial and commercial filter applications
- Heavy duty construction for maximum durability
- 316L Stainless Steel construction with cast head and electro-polished sump suitable for a wide range of process requirements
- Accepts 222 or 226 connector cartridges with Fin or Flat ends
- Available with 3/4″, and 1″ in-line connections for easy installation
- Ring nut closure for quick cartridge change outs
- Equipped with mounting bracket kit and wrench
- Numerous gasket options for compatibility with most fluids
Models
Maximum Operating Pressure
- 300 psig (20.7 bar) @ 200°F (93°C)
Connections
- Inlet /Outlet: 3/4″ or 1″ FNPT
- Optional: BSPT, BSPP, RF Flanges, Sanitary Ferrules or Grooved Fittings
- Drain Port: 1/4″ NPT Plug
Materials of Construction
- Head / Shell: 316L Stainless Steel
Gaskets
- Buna N
- Optional : EPR, Silicone, Viton
Options
- Gauge Ports
- Vent Port with Vent Screw
See Ordering Guide for complete selection of options
Features
Single Cartridge Housings with Ring Nut Closure for Single Open-Ended Cartridges
- Ideal for High Purity commercial and industrial applications
- Accepts Single Open-Ended cartridges with 222 or 226 style connectors
- Heavy duty 316L stainless steel construction for maximum durability
- Maximum operating pressure is 300 PSI (20 bar) @ 200°F (93°C)
- Quick-locking ring nut closure for easy cartridge change outs
- Available in 3/4″ and 1″ connection sizes
- Wide variety of gasket options for compatibility with almost any fluid
- In line fittings for easy installation (standard FNPT, flanged, sanitary (TC) or BSP connections)
- Includes mounting bracket kit and rod (for opening & closing)
Applications
- Water
- Chemicals
- Food & Beverage
- Electronics
- Oil
- Inks / Paints / Coatings
- Coolants
- Pulp & Paper
