Description

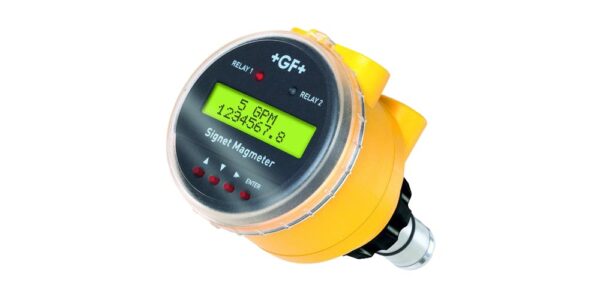

Signet 2551 Magmeter Flow sensors provide users with the benefit of not requiring any moving parts, along with consistent reliability for long term use. Maintaining these items is made extremely convenient and affordable, with high accuracy flow measurements that have a wide range of pipe sizes to satiefy the demands of any application.
Models
| Specifications | Signet 2551 Magmeter Flow sensors | ||
|
General |
Operating Range: | 0.05 to 10 m/s | 0.15 to 33 ft/s |
|---|---|---|---|
| Pipe Size Range: | DN15 to DN900 | ½ in. to 36 in. | |
| Linearity: | ± 1% reading plus 0.1% of full scale | ||
| Repeatability | ±0.5% of reading @ 25 °C (77 °F) | ||
| System Response | 20 µS/cm | ||
Features
- Operating range 0.3 to 6 m/s (1 to 20 ft/s)
- Wide turndown ratio of 20:1
- Highly repeatable output
- Simple, economical design
- Installs into pipe sizes DN15 to DN900 (½ to 36 in.)
- Self-powered/no external power required
- Test certificate included for -X0, -X1
- Chemically-resistant materials
Applications
- Pure Water Production
- Filtration Systems
- Chemical Production
- Liquid Delivery Systems
- Pump Protection
- Scrubber Systems
- Water Monitoring
- Not suitable for gases
Docs
Signet 2551 Magmeter Flow sensors Data Sheet
