Description

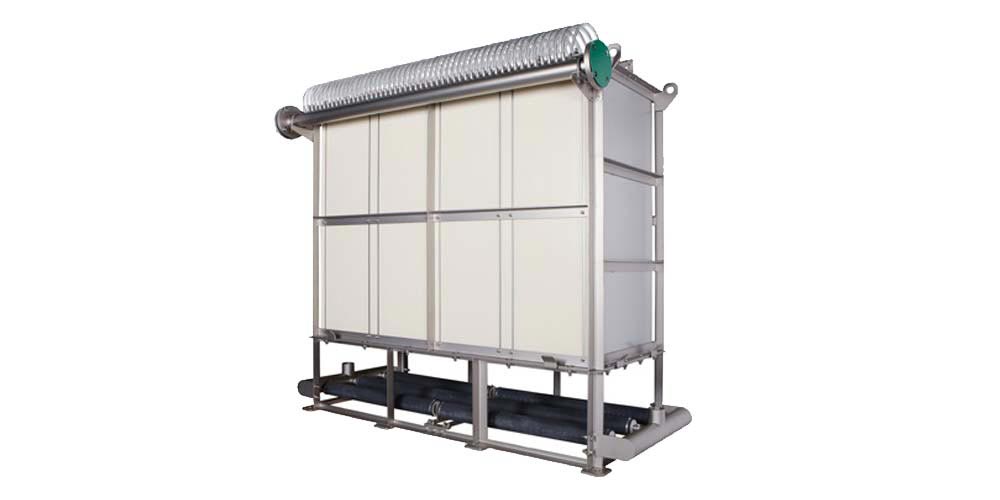

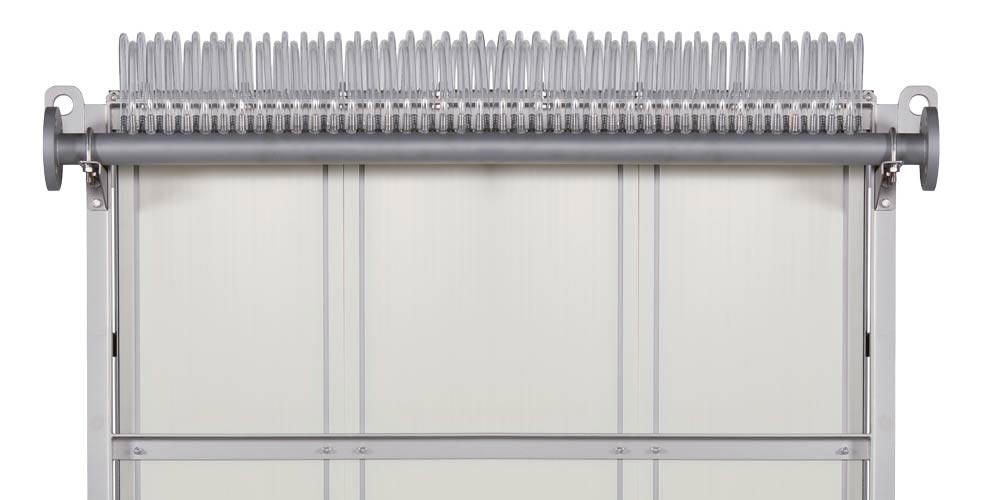

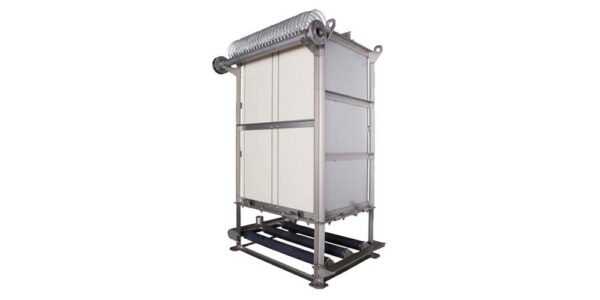

Toray Membrane Bioreactor (MBR) TMR090 Series compriseof membrane elements that is coated with a stainless steel frame, an aeration feature, and a pervaded water manifold. There MBR process utilizes activated sludge to greatly decrease biodegradable pollution, including membrane filtration and biological wastewater treatment for high quality effluent treatment. The activated sludge is then released from the treated water it has been used by way of rotary screen filters. These MBR modules are designed to require minimal maintenance, easy to operate, reliable, and cost-effective.
Models
Toray Membrane Bioreactor (MBR) TMR090 Series:
Specifications
| Membrane Area | Flow Capacity (reference value) | MBR Element type | Number of Membrane Element/strong |
|---|---|---|---|
| 90 m² | 10 – 70 m³/day (2,640-18,490 gal/day) | TSP50100 | 100 pcst |
Operating Limits
| Max. Feed Temperature | Min. Feed Temberature | Max. MLSS Concentration | Feed pH Range Operation | Max. Transmembrane Pressure |
|---|---|---|---|---|
| 40 ??/td> | 5 ??/td> | 18,000 mg/L | 5 – 10 | 20 kPa |
Dimensions
| Length | Width | Height |
|---|---|---|
| 1,720 mm | 730 mm | 1,470 mm |
Features
- Strong Pefromance & High Permeability
- Maximum Mechanical Durability & Resistant To Chemicals
- High-quality Effluent & Great Water Permeability
- Operate Reliably
- Superior Fouling Resistance
- Easy To Use System
- Simple Maintenance
- Cost Savings
Applications
- Toray Membrane Bioreactor (MBR) TMR090 Series incorporates top-rated features to maximize the quality of your Biological Waste Water Treatment process.
Docs
Toray Membrane Bioreactor (MBR) TMR090 SERIES Data Sheet
